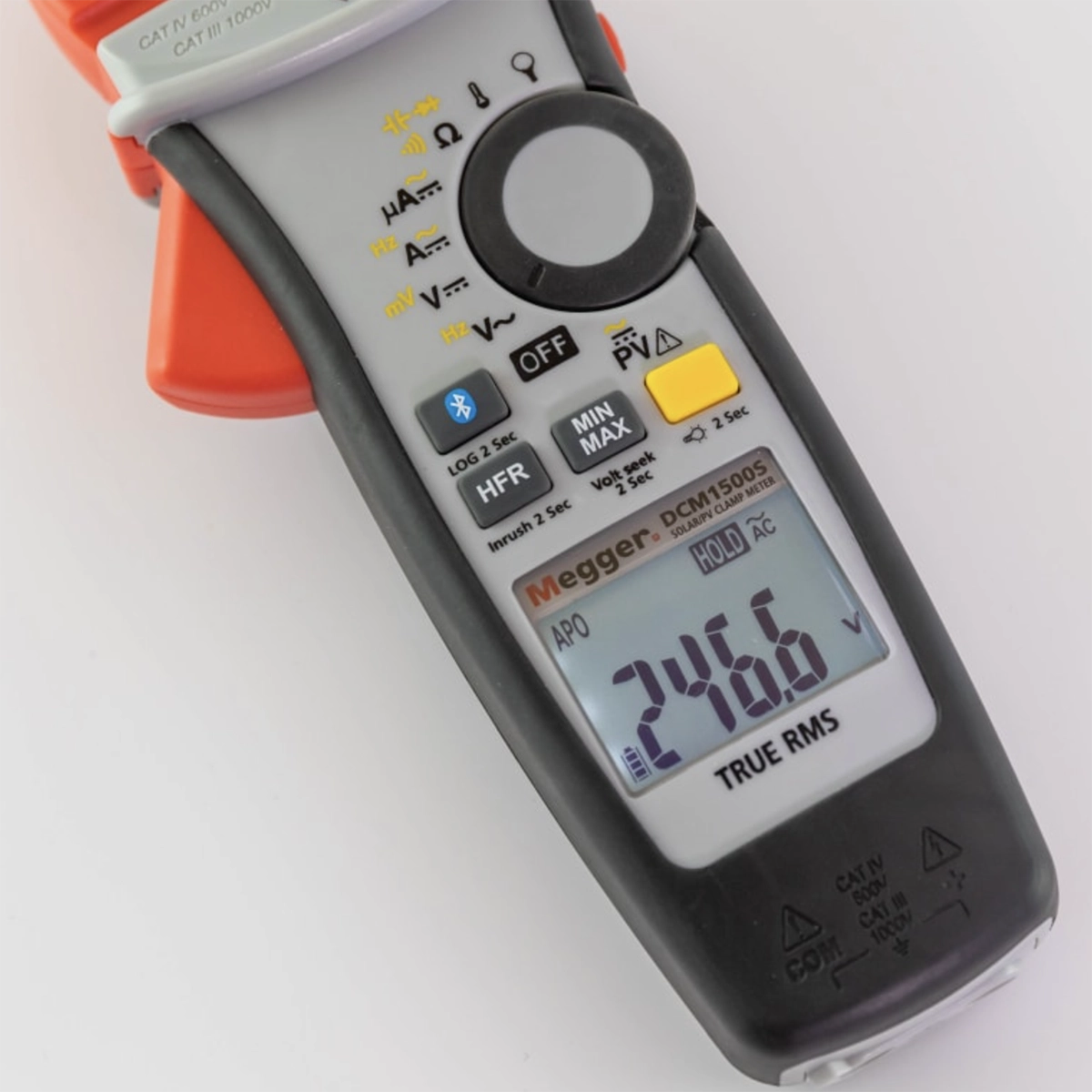

Megger DCM1500S Solar Clamp Meter
$363.00
The Megger DCM1500S Solar Clamp Meter is a high-performance True RMS clamp meter designed for photovoltaic systems and high-voltage DC applications. With Bluetooth connectivity, advanced data logging, and PV-rated leads, it is ideal for solar installation, maintenance, and troubleshooting.
| Product Condition |
New |
|---|
In stock
Overview
The Megger DCM1500S Solar Clamp Meter is engineered for professionals working on solar photovoltaic installations and high-energy AC/DC electrical systems. Capable of measuring up to 2000 V DC, 1500 V AC, and 1500 A AC/DC, it provides the range and safety required for modern renewable energy and industrial environments.
Developed by Megger, the DCM1500S combines advanced measurement capability with wireless monitoring via the Megger Link App, allowing technicians to view live trends and log data remotely through Bluetooth connectivity.
Features and Performance
High-voltage measurement up to 2000 V DC and 1500 V AC (with PVHV leads)
True RMS AC voltage and current measurement for accurate readings
AC/DC current measurement up to 1500 A
Designed specifically for solar PV and renewable energy systems
Bluetooth connectivity for remote monitoring, trending, and data logging
Internal data logging with storage for up to 1000 records
Smart Hold function with audible alert for rising measurements
Min/Max and Inrush current modes for startup and load analysis
High Frequency Rejection Filter for stable readings
Non-contact voltage detection (VoltSeek)
Integrated torch light in the clamp jaw for low-light environments
Measures voltage, current, resistance, capacitance, diode, frequency, and temperature
Why You Should Buy It
The Megger DCM1500S is ideal for electricians and engineers working in solar PV, renewable energy, battery systems, EV servicing, and industrial power applications. Its high-voltage capability, advanced safety ratings, and wireless monitoring tools help improve accuracy, efficiency, and operator safety. This clamp meter is a reliable choice for professionals who need comprehensive diagnostics in demanding electrical environments.
FAQ – Megger DCM1500S
Is the Megger DCM1500S suitable for solar photovoltaic systems?
Yes. It is specifically designed for PV installations and supports measurements up to 2000 V DC using PV-rated leads.
Does this clamp meter support Bluetooth connectivity?
Yes. It connects to the Megger Link App for live monitoring, data logging, and trend analysis.
What current range does it support?
It measures up to 1500 A AC or DC.
Can it measure parameters other than voltage and current?
Yes. It also measures resistance, capacitance, diode, frequency, and temperature.
What safety ratings does it have?
It is rated CAT III 1000 V and CAT IV 600 V in accordance with IEC standards.
| Specification | Details |
|---|---|
| Measurement Type | True RMS AC/DC |
| Maximum DC Voltage | 2000 V (with PVHV leads) |
| Maximum AC Voltage | 1500 V |
| Maximum AC/DC Current | 1500 A |
| Display | 6000-count LCD with backlight |
| Auto Ranging | Yes |
| Inrush Current | Yes |
| Data Logging | Up to 1000 records |
| Wireless Connectivity | Bluetooth (Megger Link App) |
| Non-Contact Voltage | Yes (VoltSeek) |
| Maximum Conductor Size | 42 mm (1.65 in) |
| Resistance | Up to 600 kΩ |
| Capacitance | Up to 1000 µF |
| Frequency | Up to 10 kHz |
| Temperature Measurement | °C / °F |
| IP Rating | Indoor use |
| Safety Rating | CAT III 1000 V / CAT IV 600 V |
| Battery Type | 2 × AA |
| Battery Life | Approx. 200 hours |
| Dimensions (W × H × D) | 62 × 254 × 41 mm |
| Weight | Approx. 480 g |
| ECCN | EAR99 |
| Warranty | 3 Years |

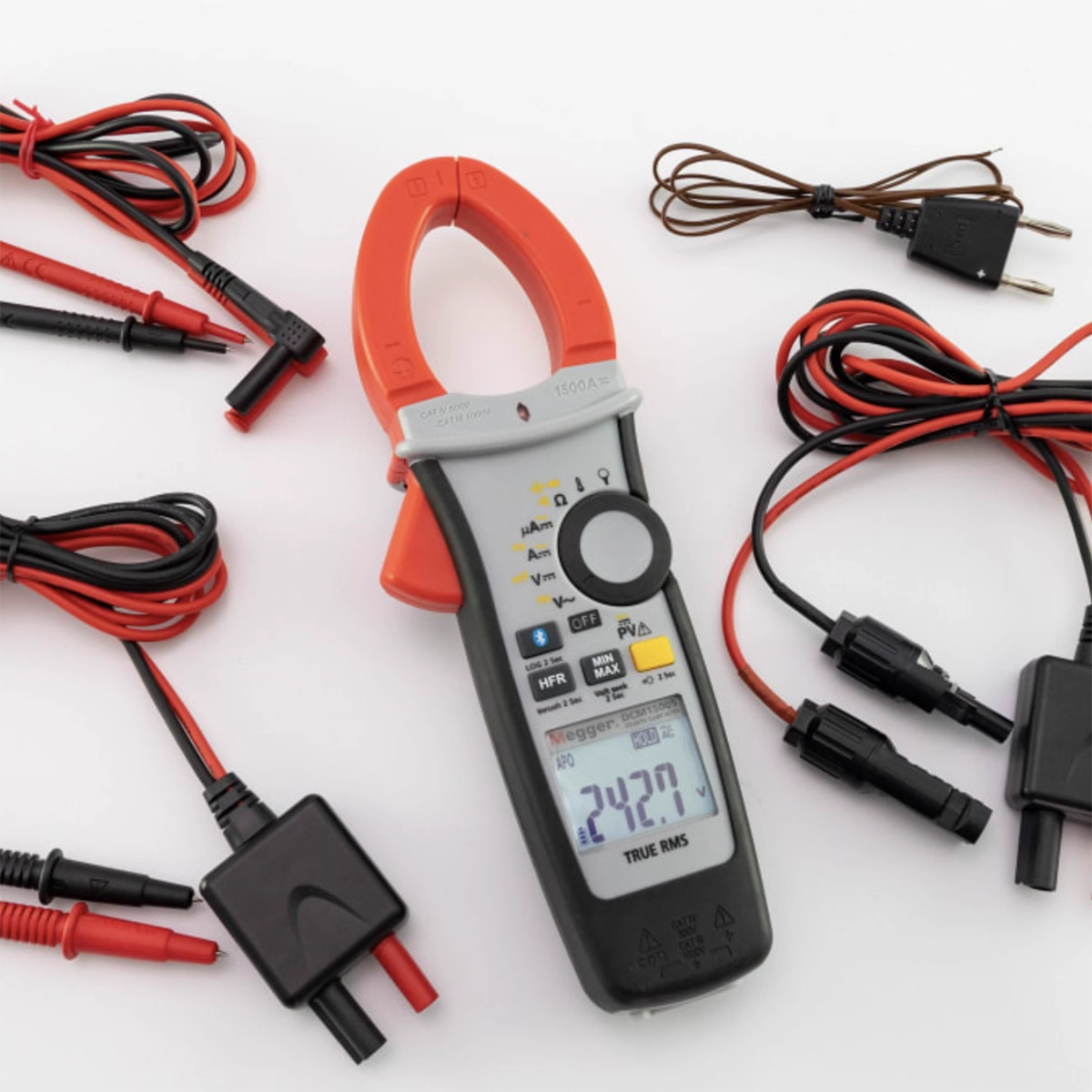

Megger DCM1500S Solar Clamp Meter
DCM 4 mm lead set with probes and crocodile clips
TP-90 thermocouple probe
PVHV1 lead set (4 mm plugs)
PVHV2 lead set (MC4PV plugs)
Hard carrying case
