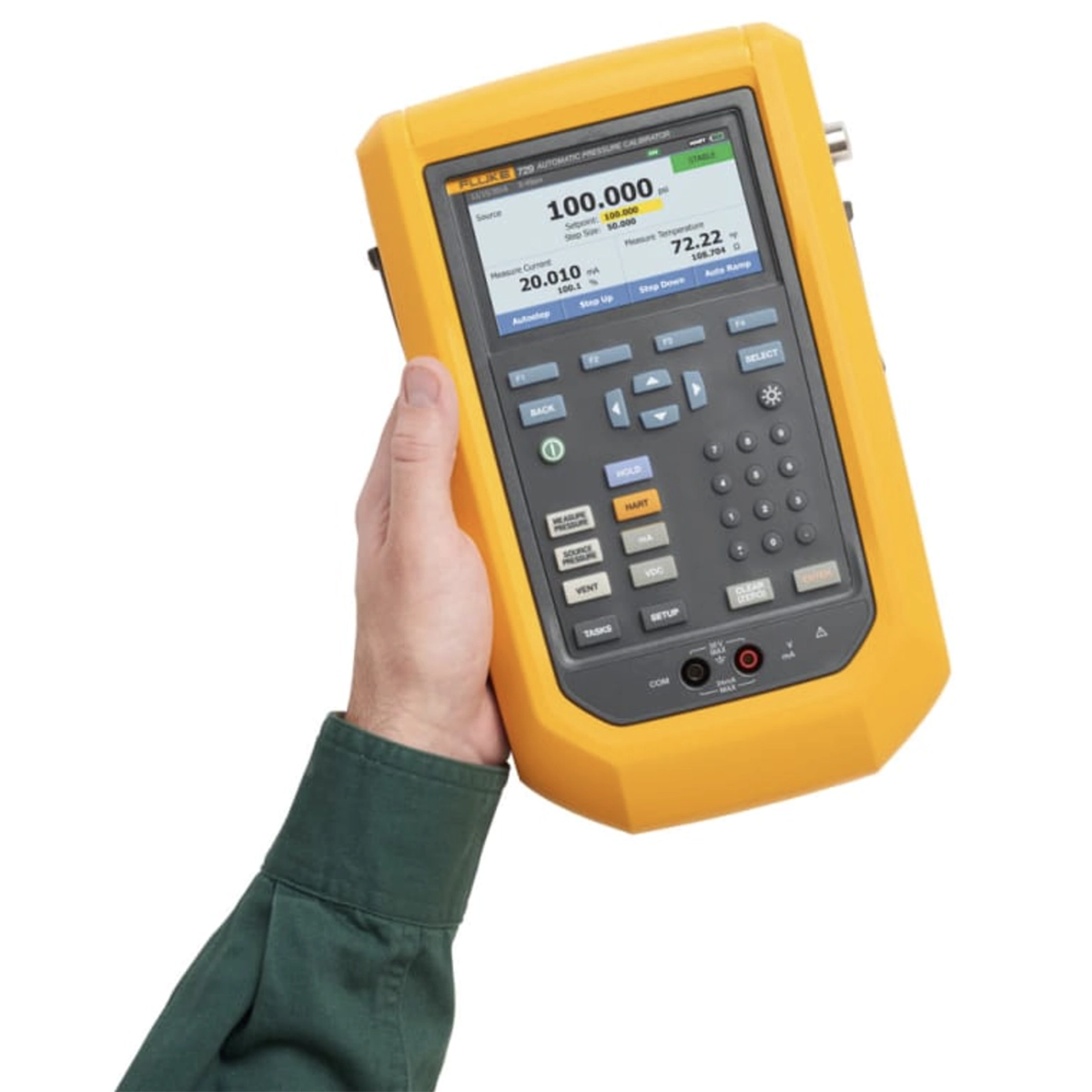

Fluke 729 Automatic Pressure Calibrator

The Fluke 729 Automatic Pressure Calibrator is purpose-built to simplify and accelerate pressure calibration in the field. Designed for process technicians, the 729 eliminates manual pumping by using an internal electric pump that automatically generates and regulates pressure up to 150 psi (10 bar). Simply enter a target pressure, and the calibrator does the rest—quickly, accurately, and consistently.

With integrated 4–20 mA measurement and sourcing, 24 V loop power, and built-in HART communication, the Fluke 729 provides a complete solution for calibrating pressure transmitters, switches, and I/P devices in one rugged, portable instrument.

Features and Performance

• Automatic Pressure Generation & Regulation
  Built-in electric pump automatically reaches and stabilizes target pressures up to 150 psi (10 bar).

• Multi-Point Automatic Calibration
  Enter start/end pressures, number of test points, and tolerances—729 performs and documents the entire test automatically.

• Bright Color Graphical Display
  Dual/triple-channel display clearly shows pressure, mA output, and % error, with out-of-tolerance results highlighted.

• HART Communication (Light Configuration)
  Perform mA trim, applied value trim, pressure zero trim, tag changes, unit selection, and device diagnostics.

• 4–20 mA Loop Testing with 24 V Power
  Measure, source, and simulate mA signals while powering transmitters without external supplies.

• Automatic Leak Compensation
  Internal fine pressure control maintains stable pressure even with minor hose or fitting leaks.

• Documentation & Data Management
  Automatically records results and uploads data to DPCTrack2™ Calibration Management Software.

• Field-Ready Rugged Design
  Portable, drop-tested to 1 meter, and backed by a 3-year warranty.

Why You Should Buy It

• Eliminates manual hand pumping and fine adjustment

• Speeds up pressure calibration and documentation

• Reduces operator error with automated test templates

• Ideal for pressure transmitters, switches, and I/P devices

• Trusted Fluke reliability for demanding field environments

FAQ – Fluke 729 150G

Q: What pressure range does the Fluke 729 150G support?
A: This model supports automatic pressure generation up to 150 psi (10 bar).

Q: Does it support HART communication?
A: Yes, it supports light HART tasks such as mA trim, zero trim, tag changes, and diagnostics.

Q: Can it power pressure transmitters during calibration?
A: Yes, it includes a built-in 24 V loop power supply.

Q: Is calibration documentation automatic?
A: Yes, the 729 automatically records applied pressure, measured mA, and % error for each test point.
