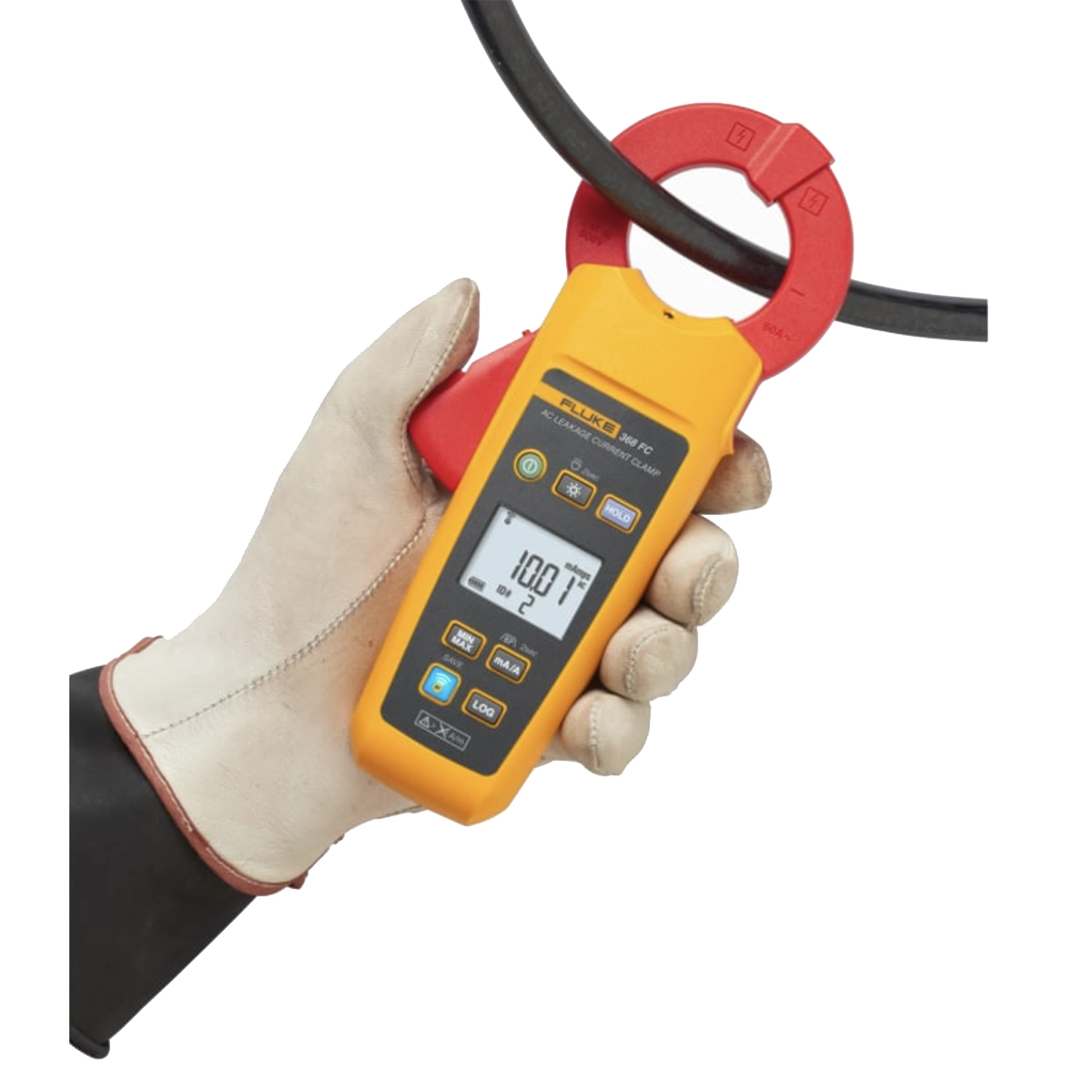

Fluke 368 FC Leakage Current Clamp Meter
$615.00
The Fluke 368 FC Wireless Leakage Current Clamp Meter delivers ultra-high sensitivity leakage measurements with 1 µA resolution, helping technicians detect insulation faults and prevent nuisance RCD or GFCI trips without taking equipment offline.
| Product Condition |
New |
|---|
In stock
Overview
The Fluke 368 FC Leakage Current Clamp Meter is designed for professionals who need precise detection of very small leakage currents in industrial and commercial electrical systems. As part of the Fluke 360 Series, it enables proactive maintenance by identifying insulation degradation and intermittent leakage issues before they cause downtime or safety events.
With 1 microamp resolution and a fully shielded 40 mm jaw, the 368 FC accurately captures leakage signals while minimizing interference from external electromagnetic noise. Wireless connectivity through Fluke Connect allows trend analysis and documentation over time.
Features and Performance
True RMS leakage current measurement with 1 µA resolution
Measures leakage current up to 60 A AC
Large 40 mm fully shielded jaw for improved accuracy on larger conductors
Selectable filter to eliminate unwanted noise and harmonics
Max, Min, and Average readings with hold function
Forward-facing LED worklight for dark panels and cabinets

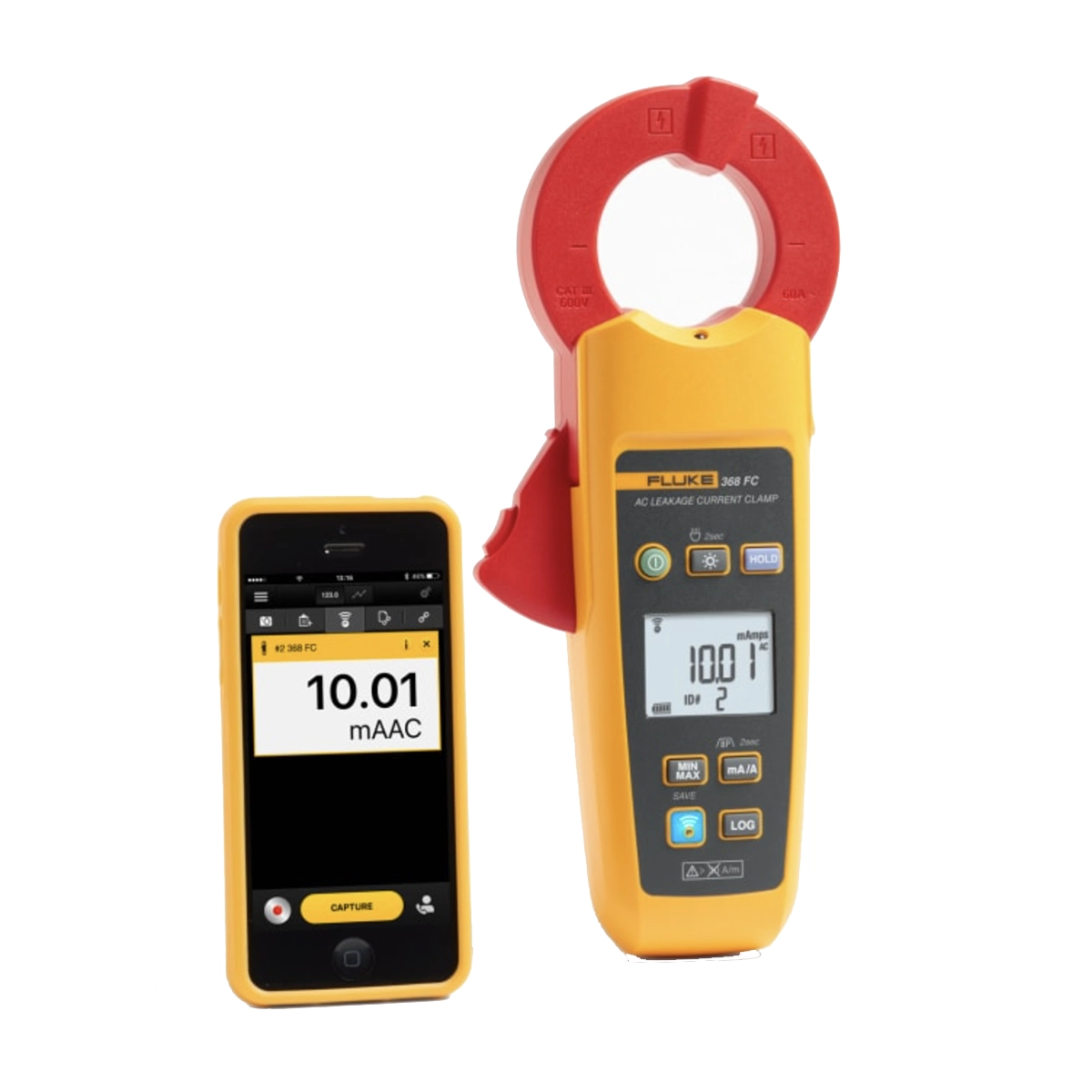

Wireless data connectivity for logging and trending via Fluke Connect
Auto-ranging operation for ease of use
Compact, lightweight design for field diagnostics
Why You Should Buy It
The Fluke 368 FC is ideal for electricians, maintenance engineers, and facility managers responsible for preventive maintenance and electrical safety. Its high sensitivity allows early detection of leakage currents that can cause nuisance tripping of RCDs and GFCIs. Wireless data logging and trend comparison help diagnose intermittent faults without interrupting operations, saving time and reducing risk.
FAQ – Fluke 368 FC
What is the smallest current the Fluke 368 FC can measure?
It offers a resolution as low as 1 microamp (µA), ideal for detecting very small leakage currents.
What is the maximum current rating?
The meter measures leakage current up to 60 A AC.
What is the jaw size?
The clamp has a 40 mm (1.57 in) jaw opening, suitable for larger conductors.
Does it support wireless data logging?
Yes. It connects wirelessly through Fluke Connect for logging, trending, and documentation.
Is it designed for inrush current measurement?
No. The Fluke 368 FC is optimized specifically for leakage current measurement, not inrush.
| Specification | Details |
|---|---|
| Measurement Type | True RMS Leakage Current |
| Resolution | 1 µA |
| Maximum AC Current | 60 A |
| Jaw Opening | 40 mm (1.57 in) |
| Auto Ranging | Yes |
| Noise Filter | Selectable |
| Max / Min / Avg | Yes |
| Inrush Current | No |
| Data Logging | Yes |
| Wireless Interface | Fluke Connect |
| IP Rating | IP30 |
| Safety Approval | CE, CSA |
| Battery Type | AA |
| Power Supply | Battery powered |
| Product Weight | 500 g (1.10 lb) |
| Dimensions (L × W × H) | 234 × 101 × 46 mm |
| ECCN | EAR99 |
| Calibration | Not included |
| Warranty | 1 Year |

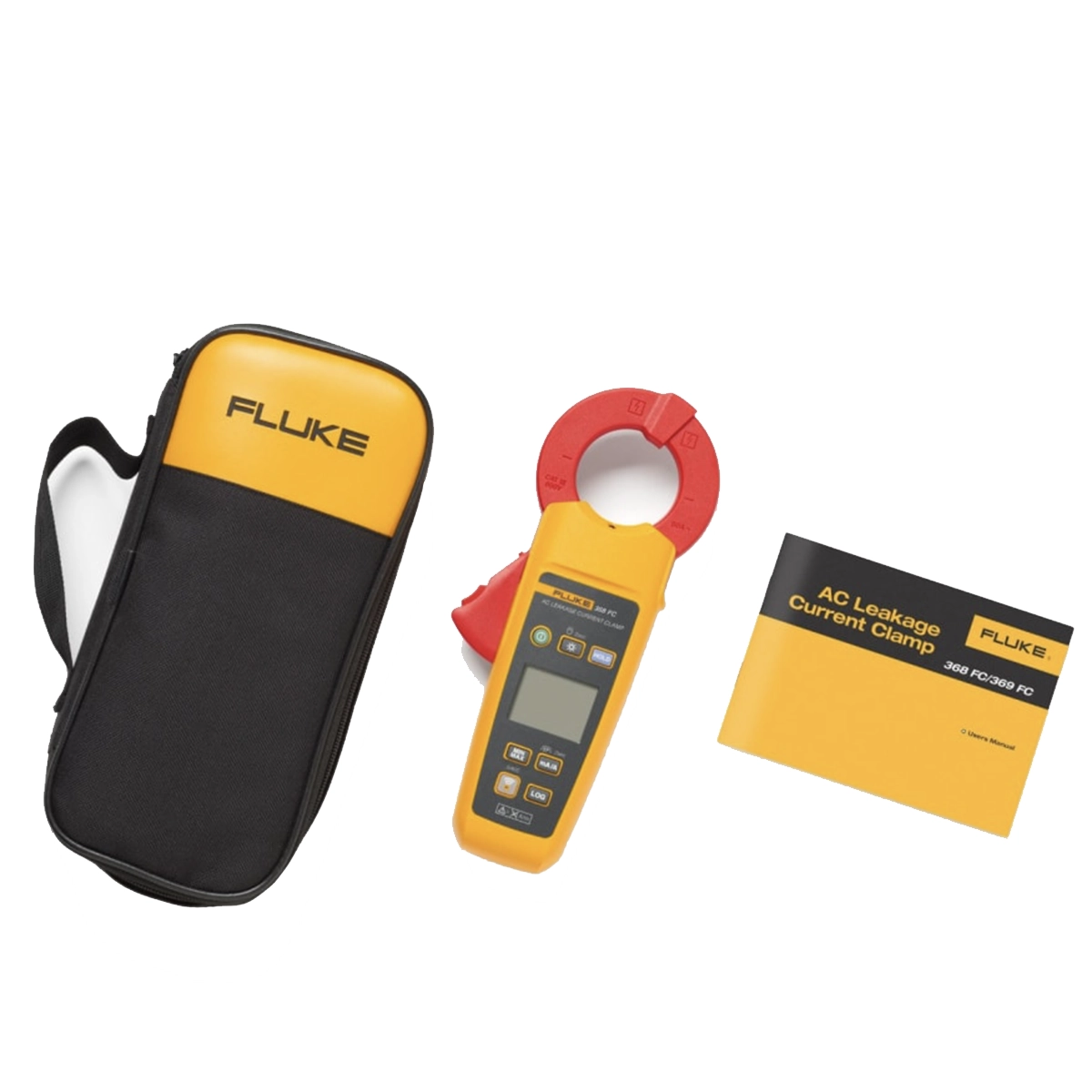

Fluke 368 FC Wireless Leakage Current Clamp Meter
Soft carrying case
User manual
Two AA batteries
