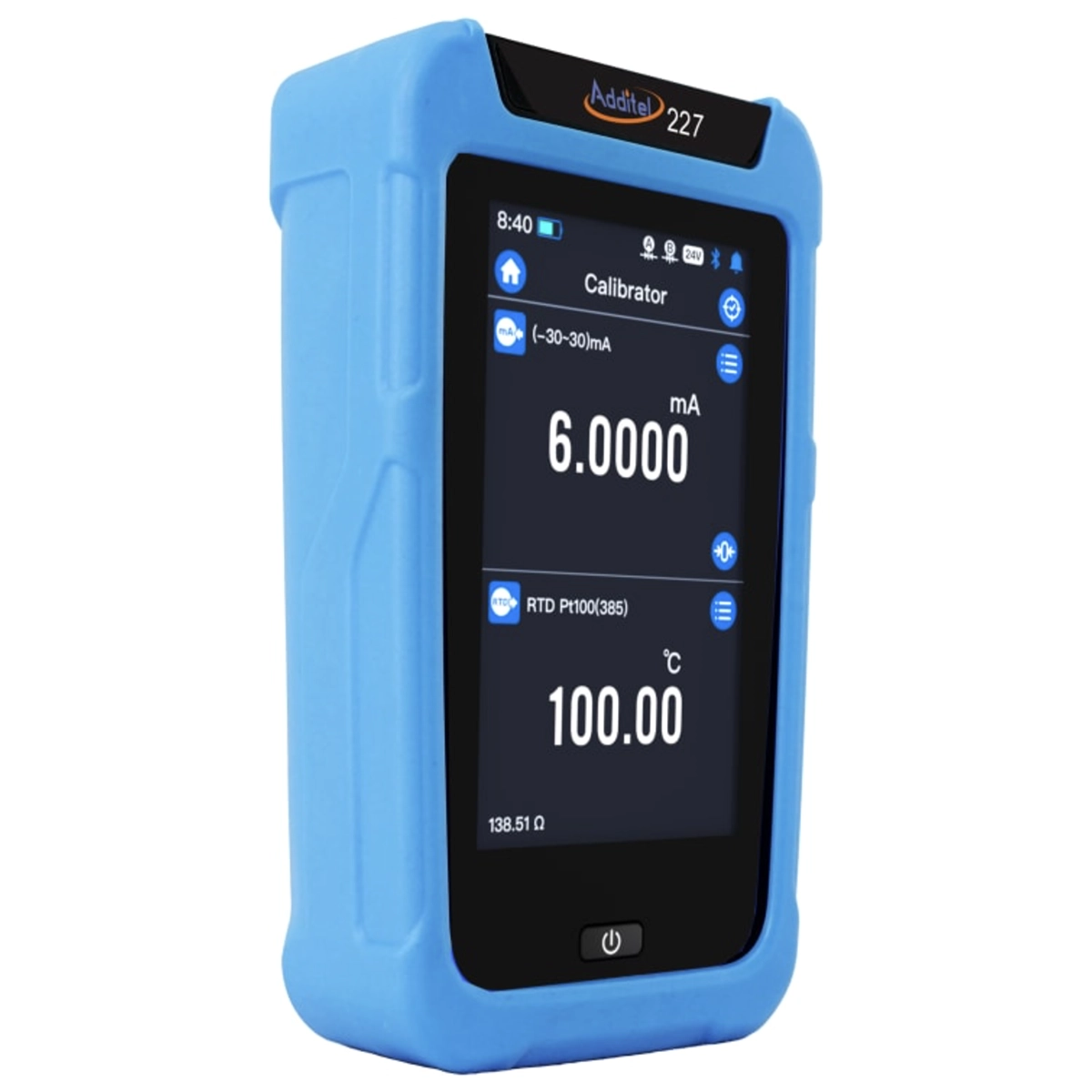

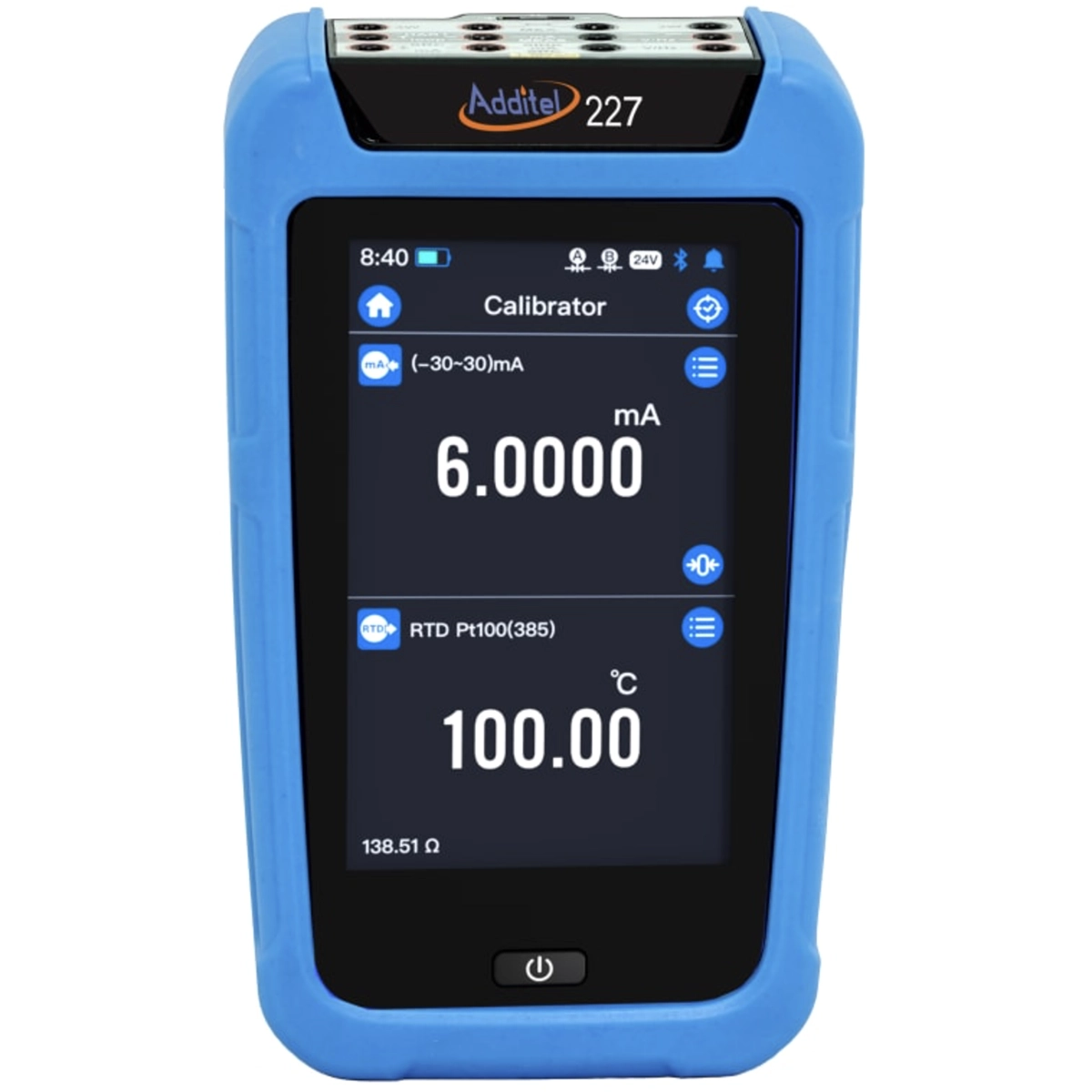

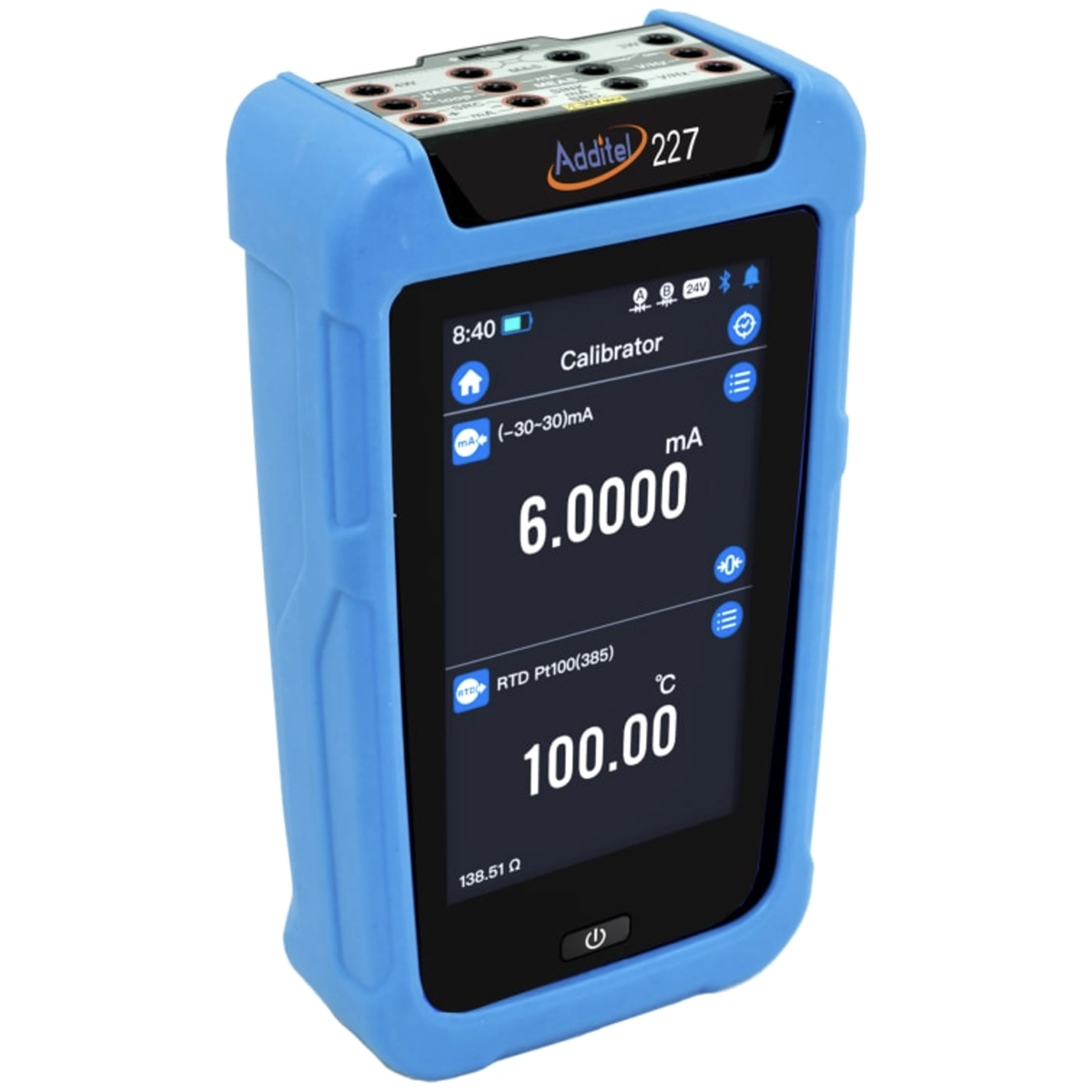

Additel ADT227 Multifunction Process Calibrator

The Additel ADT227 Multifunction Process Calibrator is a powerful documenting calibrator designed for professionals who require accuracy, durability, and full traceability in the field or calibration lab. It sources, simulates, and measures pressure, temperature, and electrical signals, while automatically recording calibration data for compliance and reporting.

Developed by Additel, the ADT227 builds on Additel’s advanced touchscreen platform, combining high-end calibration performance with a modern, smartphone-like user experience.

Features and Performance

• True Multifunction Calibration
  Measure and source pressure, voltage, current, resistance, frequency, RTDs, and thermocouples using a single handheld instrument.

• Documenting Capability
  Stores up to 10,000 readings, enabling traceable calibration records for audits, quality systems, and regulated industries.

• Dual Pressure Sensor with Barometer
  Integrated dual pressure sensors plus a built-in barometer allow accurate gauge and absolute pressure measurements without external references.

• Large Touchscreen Interface
  Color graphical touchscreen provides intuitive navigation, fast setup, and reduced risk of user error in the field.

• IP67 Rated for Harsh Environments
  Dust-tight and water-resistant design ensures reliable operation in demanding industrial conditions.

• Modern Connectivity
  USB Type-C and Bluetooth® support easy data transfer, charging, and integration with digital calibration workflows.

Why You Should Buy It

• Combines multifunction calibration and documentation in one device

• Eliminates the need for multiple single-function calibrators

• Touchscreen interface improves efficiency and usability

• IP67 protection for field and outdoor work

• Includes ISO/IEC 17025 calibration certificate

• Ideal for process plants, utilities, oil & gas, and calibration labs

FAQ – Additel ADT227

Q: Is the Additel ADT227 intrinsically safe?
A: No. The ADT227 is not intrinsically safe. For hazardous areas, consider the ADT226Ex model.

Q: Can the ADT227 record calibration results?
A: Yes. It is a documenting calibrator capable of storing up to 10,000 readings.

Q: What types of signals can it calibrate?
A: Pressure, voltage, current, resistance, frequency, RTDs, and thermocouples.

Q: Does it include a calibration certificate?
A: Yes. The ADT227 is supplied with an ISO/IEC 17025 traceable calibration certificate.
